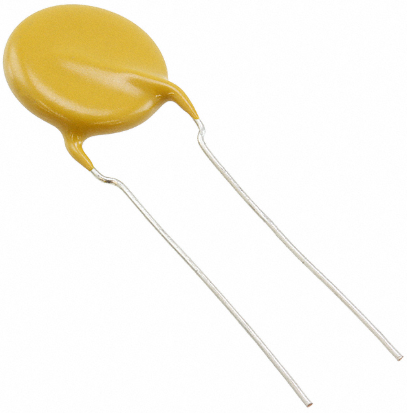

103M 1KV ceramic disc capacitor (10nF / 0.01µF) with 5.5mm lead spacing used for high voltage filtering, coupling, and noise suppression in electronic circuits.
The 103M 1KV Ceramic Disc Capacitor is a high-voltage ceramic capacitor commonly used in electronic circuits for filtering, coupling, decoupling, and noise suppression. The code "103" indicates a capacitance value of 10nF (0.01µF), while "M" represents a tolerance of ±20%.
This capacitor has a high voltage rating of 1000V (1KV), making it suitable for high-voltage electronic applications such as power supplies, inverter circuits, SMPS, and high-voltage filtering circuits.
It comes in a radial leaded ceramic disc package with approximately 5.5mm lead spacing and a yellow epoxy-coated body for durability and insulation. Ceramic disc capacitors are known for their stability, reliability, and excellent high-frequency performance.
Key Features:
• Capacitance: 10nF (0.01µF)
• Capacitor Code: 103
• Tolerance: ±20% (M)
• Voltage Rating: 1KV (1000V)
• Ceramic disc type capacitor
• Lead spacing: 5.5mm
• High reliability and stability
Applications:
• High voltage circuits
• Power supplies and SMPS
• Noise filtering
• Signal coupling and decoupling
• Inverter circuits
• General electronic circuits
22pF ceramic capacitor designed for high-frequency circuits, crystal oscillators, RF applications, and signal filtering with stable performance and low loss.
16pF ceramic capacitor commonly used in crystal oscillator circuits, RF applications, and high-frequency signal filtering with stable capacitance and low loss.
2200µF 16V radial electrolytic capacitor with 10x20mm size used for power supply filtering, energy storage, and smoothing applications in electronic circuits.
470µF 50V radial electrolytic capacitor used for power supply filtering, energy storage, and voltage smoothing in electronic circuits.
100µF 25V radial electrolytic capacitor with 6.3x12mm size used for power supply filtering, DC smoothing, and energy storage in electronic circuits.100µF 25V radial electrolytic capacitor with 6.3x12mm size used for power supply filtering, DC smoothing, and energy storage in electronic circuits.
10µF 50V radial electrolytic capacitor with 5x11mm size used for power supply filtering, coupling, decoupling, and DC smoothing applications.

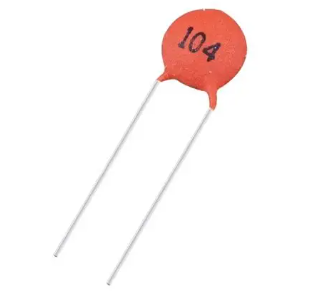

104 ceramic disc capacitor (0.1µF / 100nF) 50V used for decoupling, noise filtering, and signal coupling in electronic circuits.
