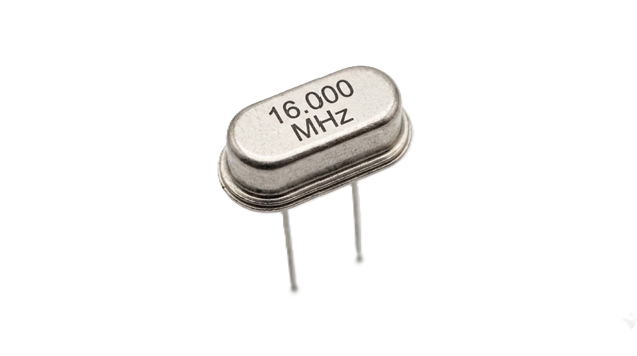

16MHz Crystal Oscillator

The 16MHz Crystal Oscillator is a widely used electronic component that provides a stable clock signal for microcontrollers and digital circuits. It operates at a frequency of 16MHz and is commonly used in embedded systems such as Arduino boards, microcontrollers, and communication devices.

This crystal oscillator works by utilizing the mechanical resonance of a quartz crystal to generate an accurate and stable frequency. It is typically used with two small capacitors (usually 18pF–22pF) to form a crystal oscillator circuit.

The 16MHz crystal is commonly used with microcontrollers like ATmega328, ATmega16, ATmega32, and many other embedded system ICs. It ensures accurate timing for program execution, communication protocols, and system synchronization.

Key Features:

• Operating Frequency: 16MHz

• High frequency stability

• Low power consumption

• Compact metal crystal package

• Suitable for microcontroller clock circuits

• Reliable and long operating life

Applications:

• Arduino boards

• Microcontroller systems

• Embedded electronics

• Communication devices

• Timing circuits

• Digital electronics
