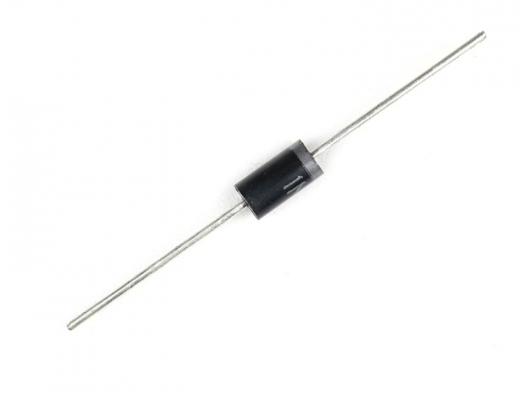

1N4007 DIP Diode is a general-purpose axial rectifier diode used for high-voltage rectification, reverse polarity protection, and power supply circuits.
The 1N4007 diode is a widely used general-purpose rectifier diode designed for through-hole (DIP / axial lead) electronic circuits. It is capable of handling high reverse voltage up to 1000V and forward current up to 1A, making it suitable for a wide range of power and signal rectification applications.
Packaged in the DO-41 axial lead format, the diode can be easily mounted on through-hole PCBs, breadboards, and prototyping boards. It is commonly used in AC-to-DC rectifier circuits, reverse polarity protection, voltage clamping, and general electronic circuit protection.
The 1N4007 is one of the most commonly used rectifier diodes in power supplies, battery chargers, adapters, LED drivers, and general electronics projects.
Key Features
Type: General purpose rectifier diode
Maximum repetitive reverse voltage: 1000V
Maximum forward current: 1A
Package: DO-41 axial lead (through-hole / DIP)
Low forward voltage drop
High surge current capability
Typical Applications
AC to DC rectification
Reverse polarity protection
Power supply circuits
Battery charger circuits
General electronics protection
1N4001 Rectifier Diode – 50V, 1A, DO-41 (Through-Hole) General-purpose silicon rectifier diode suitable for AC to DC conversion, reverse polarity protection, and power rectification applications.
1N4002 Rectifier Diode – 100V, 1A, DO-41 (Through-Hole) Reliable general-purpose silicon diode for rectification and protection in low-voltage applications up to 100V.
8 mm DIP LED (Red) is a high-visibility through-hole light-emitting diode that emits bright red light, commonly used for indicators, status displays, and visual feedback in electronic circuits.
8 mm DIP LED (Green) is a bright, through-hole light-emitting diode that emits vivid green light for clear visual indication in electronic circuits and panels.
Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects
Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects
Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects

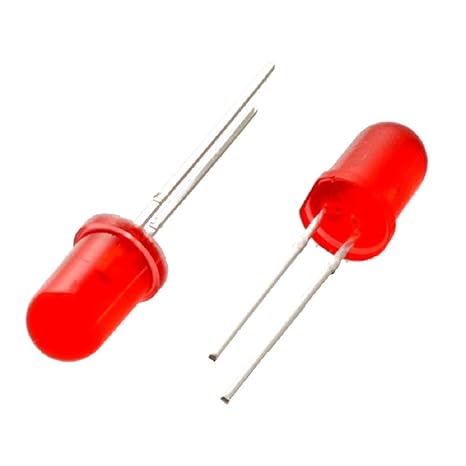

Product Type: Light Emitting Diode (LED) LED Size: 5 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depending on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Viewing Angle: 20° – 60° (varies by model) Application: Indicator lights, electronic circuits, Arduino projects, DIY electronics
