MMSZ5245

MMSZ5245

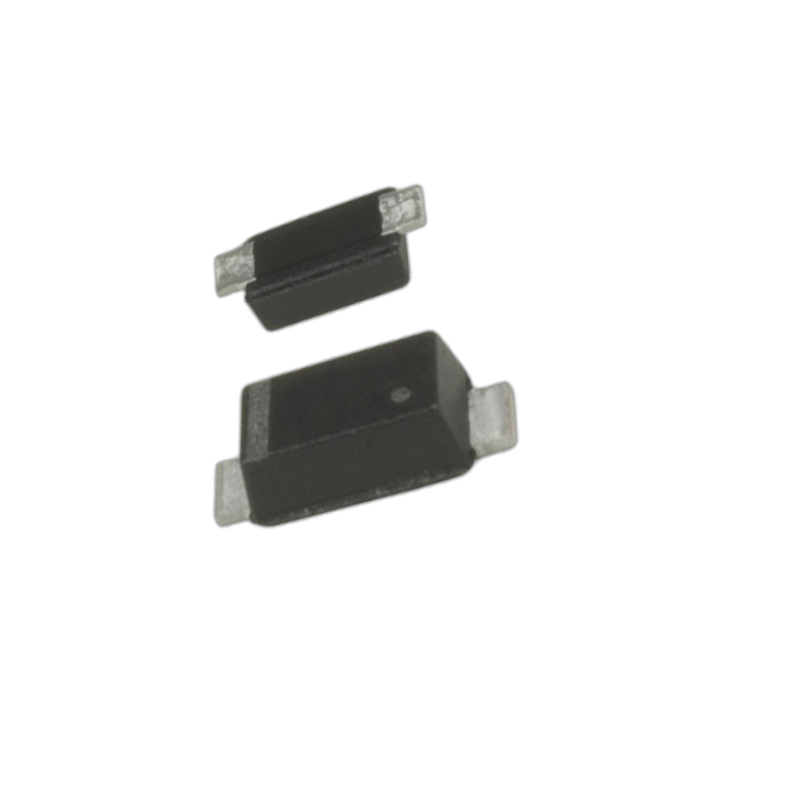

MMSZ5245 – 15 V, 0.5 W Zener diode in SOD‑123 package, ±5% tolerance, RoHS compliant

₹2.80
  • Device Type: Zener Diode
  • Part Number: MMSZ5245B
  • Zener Voltage (V<sub>Z</sub>): 15 V (14.25 V to 15.75 V)
  • Power Dissipation (P<sub>D</sub>): 0.5 W
  • Test Current (I<sub>ZT</sub>): 8.5 mA
  • Reverse Leakage Current (I<sub>R</sub>): ~0.1 µA @ 11 V
  • Forward Voltage Drop (V<sub>F</sub>): ≤ 0.9 V @ 10 mA
  • Dynamic Impedance (Z<sub>ZT</sub>): 16 Ω max
  • Operating / Junction Temperature: –55 °C to +150 °C
  • Package / Mounting: SOD‑123 (surface mount)
  • Tolerance: ±5%
  • Application : voltage regulation and overvoltage protection in compact circuits, such as reference voltage generation, bias stabilization, or clamping in power supply modules.
