Display Type: 7 Segment LED Display Digits: 1 Digit Display Size: 0.56 Inch Color: Red Configuration: Common Cathode Operating Voltage: 1.8V – 2.2V per segment Mounting Type: Through Hole (DIP) Pins: 10 Pin
The 0.56 Inch 7 Segment 1 Digit LED Display – Common Cathode (Red) is a widely used electronic display component designed for numeric output in digital circuits. It contains seven LED segments arranged in a figure-eight pattern, allowing the display of digits from 0 to 9.
This display features a 0.56-inch digit height, making it clearly visible for applications such as counters, clocks, meters, and electronic displays. The bright red LED segments provide high visibility even in low-light environments.
The common cathode configuration means that all cathodes of the LED segments are connected together internally, while individual segment pins control each LED segment. When a segment pin receives a HIGH signal, that segment lights up.
The display uses through-hole mounting and typically includes 10 pins, making it easy to integrate with microcontrollers, development boards, and digital circuits.
Due to its reliability and simple interface, this component is commonly used in Arduino projects, digital clocks, voltmeters, counters, calculators, and measurement instruments.
1N4001 Rectifier Diode – 50V, 1A, DO-41 (Through-Hole) General-purpose silicon rectifier diode suitable for AC to DC conversion, reverse polarity protection, and power rectification applications.
1N4002 Rectifier Diode – 100V, 1A, DO-41 (Through-Hole) Reliable general-purpose silicon diode for rectification and protection in low-voltage applications up to 100V.
8 mm DIP LED (Red) is a high-visibility through-hole light-emitting diode that emits bright red light, commonly used for indicators, status displays, and visual feedback in electronic circuits.
8 mm DIP LED (Green) is a bright, through-hole light-emitting diode that emits vivid green light for clear visual indication in electronic circuits and panels.

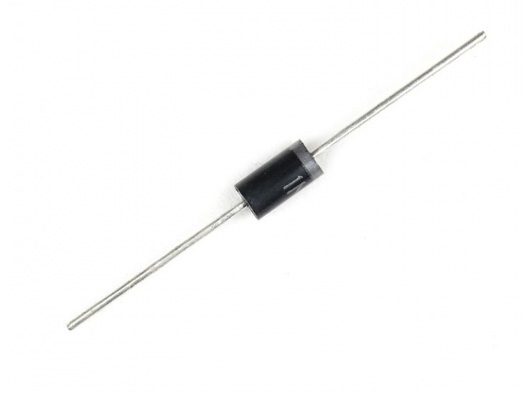

1N4007 DIP Diode is a general-purpose axial rectifier diode used for high-voltage rectification, reverse polarity protection, and power supply circuits.

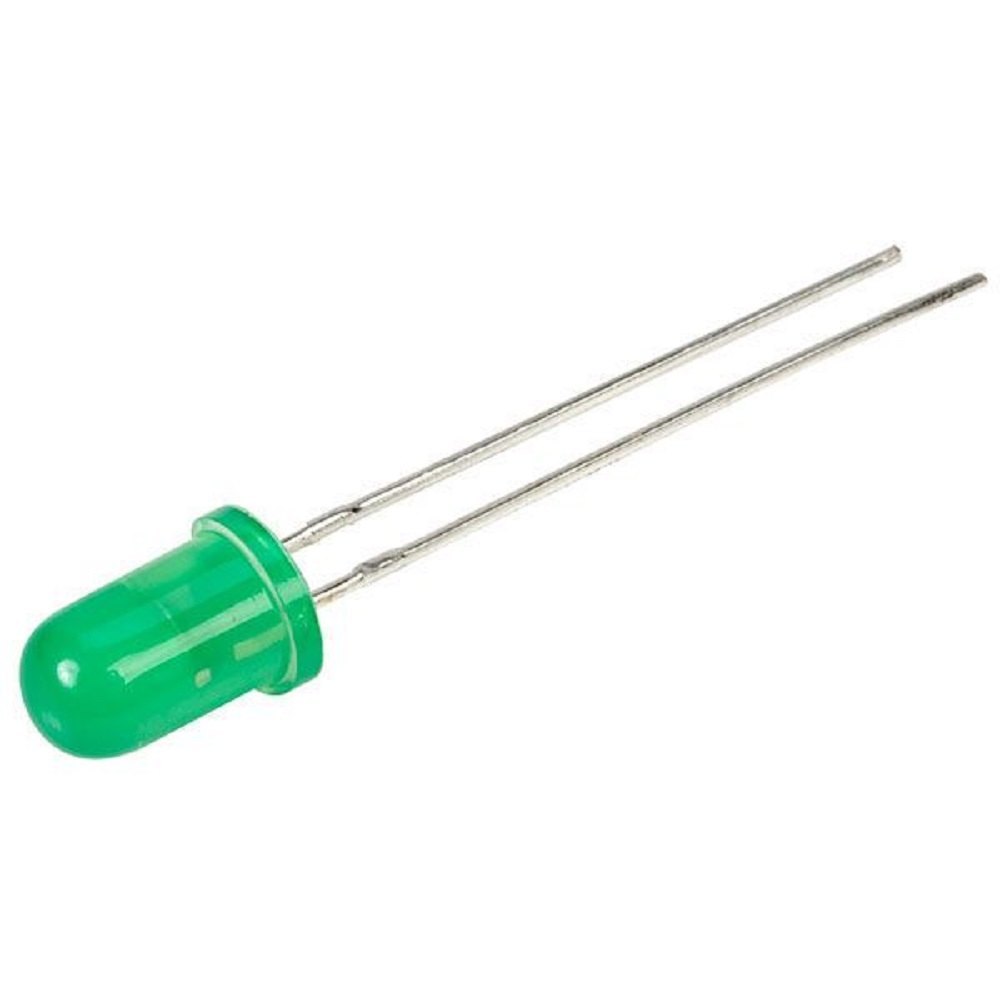

Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects

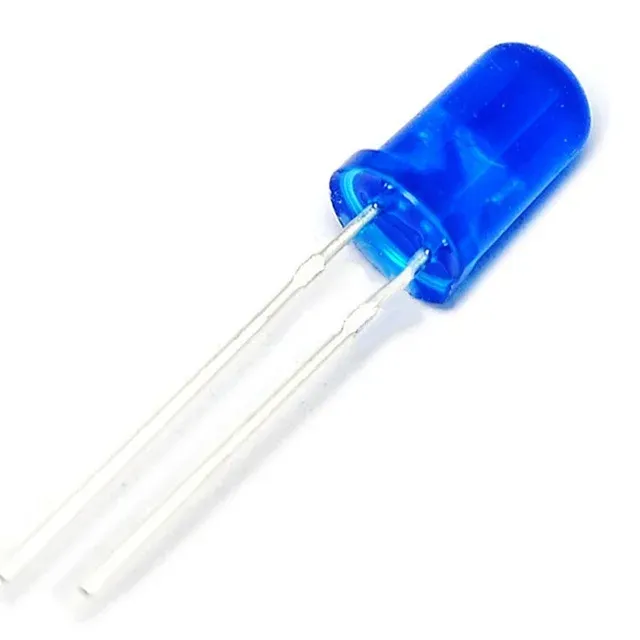

Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects

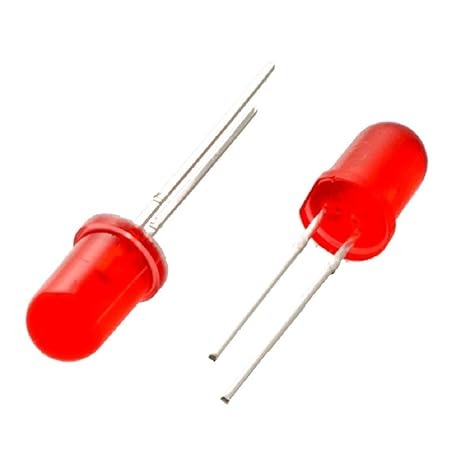

Product Type: Light Emitting Diode (LED) LED Size: 3 mm Lens Type: Round / Clear or Diffused Available Colors: Red, Green, Blue, Yellow, White Forward Voltage: 2V – 3.2V (depends on color) Forward Current: 20 mA (typical) Mount Type: Through Hole Application: Indicator lights, electronic circuits, DIY projects, Arduino projects
