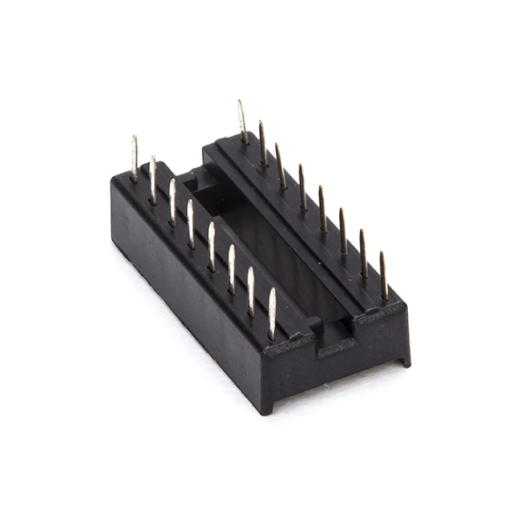

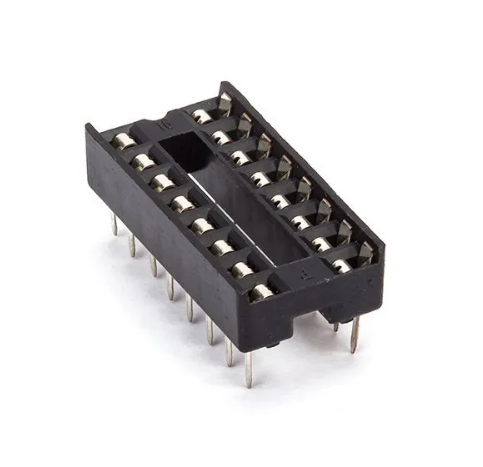

16 Pin DIP IC Base Socket designed for securely mounting and easily replacing 16-pin integrated circuits without soldering directly to the PCB.
The 16 Pin IC Base (DIP Socket) is used to mount 16-pin Dual Inline Package (DIP) integrated circuits on printed circuit boards while allowing easy replacement of the IC without desoldering. It provides reliable electrical contact and protects ICs from heat damage during soldering.
These sockets are commonly used in development boards, prototyping circuits, microcontroller applications, and repair work. By using an IC socket, the integrated circuit can be inserted or removed easily, making maintenance and upgrades simpler.
The socket features 16 precision contacts arranged in a standard 2.54mm pitch DIP layout, ensuring compatibility with most 16-pin ICs such as CD4017, ULN2003, LM324, NE556, and other DIP-16 packages.
Made from high-quality insulating material with durable metal contacts, the IC base ensures long life, good conductivity, and secure IC placement.
Key Features:
Supports 16 Pin DIP ICs
Standard 2.54mm pin spacing
Easy IC replacement and maintenance
Protects ICs from soldering heat
Reliable electrical connection
Suitable for prototyping and PCB applications
Applications:
Arduino and microcontroller projects
PCB circuit design
Electronics prototyping
Repair and maintenance of electronic boards
Educational electronics kits
