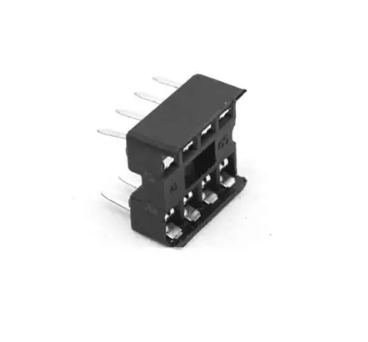

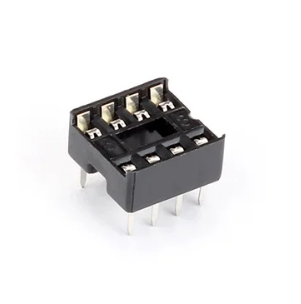

8 Pin DIP IC Base Socket designed for mounting and easily replacing 8-pin integrated circuits on PCBs without directly soldering the IC.
The 8 Pin IC Base (DIP Socket) is used to securely mount 8-pin Dual Inline Package (DIP) integrated circuits on printed circuit boards while allowing easy insertion and removal of the IC. Using an IC socket helps protect sensitive integrated circuits from heat damage during soldering and allows easy replacement if the IC needs to be changed.
The socket features 8 precision contacts arranged in the standard 2.54mm pitch DIP configuration, ensuring compatibility with most DIP-8 integrated circuits. It provides reliable electrical connection and strong mechanical support for the IC.
8-pin IC bases are commonly used in prototyping boards, microcontroller circuits, and electronic repair work. They are frequently used with ICs such as NE555 timer IC, LM358 operational amplifier, ATTiny85 microcontroller, and other DIP-8 devices.
Key Features:
• Supports 8 Pin DIP ICs
• Standard 2.54mm pin spacing
• Easy IC insertion and replacement
• Protects IC from soldering heat
• Durable and reliable contacts
• Suitable for PCB mounting
Applications:
• Arduino and embedded projects
• Electronic circuit prototyping
• PCB development boards
• Industrial electronics
• Educational electronics kits
