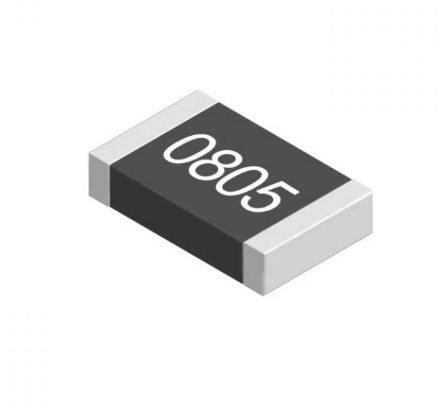

100Ω (100E) 1/4W 0805 Surface Mount Chip Resistor ±1% is a precision SMD resistor designed for accurate resistance and stable performance in PCB electronic circuits.
The 100 Ohm (100E) 0805 Surface Mount Chip Resistor is a fixed-value resistor designed for surface-mount technology (SMT) PCB assemblies. With a resistance value of 100Ω and ±1% tolerance, it provides high accuracy and reliable electrical performance for precision electronic applications.
The 0805 package size (2.0 mm × 1.25 mm) offers an optimal balance between compact footprint and power dissipation capability. Manufactured using thick-film technology, this resistor ensures good thermal stability, low noise characteristics, and compatibility with automated pick-and-place SMT manufacturing processes.
This resistor is commonly used in LED current limiting circuits, voltage divider networks, signal conditioning circuits, sensor interfaces, and microcontroller-based electronic designs where accurate resistance values are required.
Key Features
Resistance value: 100Ω (100E)
±1% tolerance for precision circuits
Package size: 0805 SMD (2.0 mm × 1.25 mm)
Power rating: 1/4 W (0.25 W)
Stable thick-film resistor construction
Suitable for automated SMT PCB assembly
Typical Applications
LED current limiting
Precision voltage divider circuits
Sensor and signal conditioning circuits
Pull-up / pull-down resistors in digital circuits
Consumer and industrial electronics
