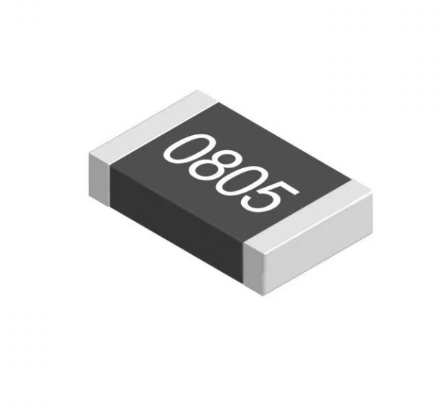

10kΩ 1/4W 0805 Surface Mount Chip Resistor ±1% is a precision SMD resistor designed for accurate resistance and stable performance in PCB electronic circuits.
The 10k Ohm (10K) 0805 Surface Mount Chip Resistor is a fixed-value resistor used in surface-mount technology (SMT) PCB assemblies. With a resistance value of 10,000 Ohms (10kΩ) and ±1% tolerance, it provides high accuracy and reliable electrical performance for precision electronic applications.
The 0805 package size (2.0 mm × 1.25 mm) allows efficient PCB layout while maintaining sufficient power dissipation capability. Manufactured using thick-film technology, the resistor ensures good thermal stability, low noise characteristics, and compatibility with automated SMT pick-and-place assembly.
This resistor is commonly used in voltage divider networks, pull-up/pull-down circuits for microcontrollers, signal conditioning circuits, sensor interfaces, and general electronic designs where precise resistance values are required.
Key Features
Resistance value: 10kΩ (10,000 Ohms)
±1% tolerance for precision circuits
Package size: 0805 SMD (2.0 mm × 1.25 mm)
Power rating: 1/4 W (0.25 W)
Thick-film construction for stability and reliability
Compatible with automated SMT PCB assembly
Typical Applications
Voltage divider circuits
Pull-up and pull-down resistors
Sensor interface circuits
Microcontroller input biasing
General consumer and industrial electronics
