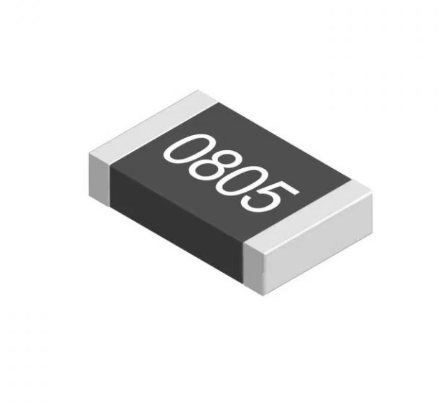

6.8kΩ (6K8) 1/4W 0805 Surface Mount Chip Resistor ±1% is a precision SMD resistor designed for accurate resistance and reliable performance in compact PCB electronic circuits.
The 6.8k Ohm (6K8) 0805 Surface Mount Chip Resistor is a fixed-value resistor used in surface-mount technology (SMT) electronic assemblies. With a resistance value of 6.8kΩ (6800 Ohms) and ±1% tolerance, it provides precise resistance for circuits requiring stable and accurate electrical performance.
The 0805 package size (2.0 mm × 1.25 mm) allows efficient use of PCB space while maintaining adequate power dissipation capability. Manufactured using thick-film resistor technology, it offers consistent electrical characteristics, good thermal stability, and compatibility with automated SMT pick-and-place assembly processes.
This resistor is commonly used in voltage divider circuits, pull-up/pull-down networks, signal conditioning circuits, sensor interfaces, and microcontroller-based designs where precise resistance values are required.
Key Features
Resistance value: 6.8kΩ (6K8 / 6800Ω)
±1% tolerance for precision circuits
Package size: 0805 SMD (2.0 mm × 1.25 mm)
Power rating: 1/4 W (0.25 W)
Thick-film construction for reliability
Suitable for automated SMT PCB assembly
Typical Applications
Voltage divider networks
Pull-up and pull-down resistors
Sensor signal conditioning
Microcontroller input biasing
Consumer and industrial electronics
